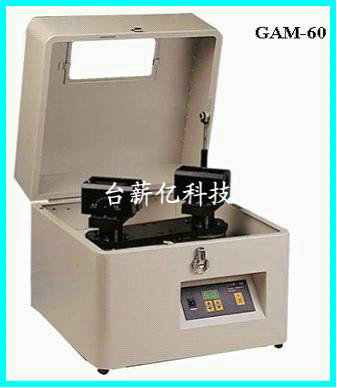

錫膏攪拌機
High-speed cream solder machine
特 點:
*操作簡易Easy to Operation GAM 60錫膏攪拌機的操作是非常單純?nèi)菀住V恍鑼㈠a膏罐置于萬用治具上,設定好攪拌時間后,按啟動鍵即可,攪拌完成,機器會自動停止。
The operation of GAM-60 solder paste mixer is very simple. Loading the solder paste container into universal holder then press "Start ”button, The GAM-60 will mix the solder paste after your setting time the machine will stop automatically, The well mixed solder paste is ready for printing .Setting the timer by press the increasing and decreasing button ,The LED display the setting time .
*良好的攪拌能力Well Mixing CapacityGAM-60錫膏攪拌機提供非常強的錫攪拌能力。任何人都能夠準備均勻的錫膏攪拌,使SMT印刷制程簡單化。
The GAM-60solder paste mixer provide powerful solder paste mixing capacity, Anyone can preparation the well mixed solder paste to simply the printing proceed in SMT line ..
*適用性強FlexibilityGAM-60錫膏攪拌機備有萬用治具功能。適用任何廠牌的錫膏容器。
The GAM-60solder paste miner equipped with universal solder paste container holders, Which can hold most of commercial solder paste container, The holders are very easy to load and unload the solder past container
*準確的操作時間控制Precise Operation Time ControlGAM 60錫膏攪拌機采用電子式計算器及LED顯示。操作時間設定簡易(0.1~9.9分鐘)。攪拌時間終了,以蜂鳴器警報告知。
The GAM-60equipped with electronic timer and LED display, it is very easy to operate and the setting rang from 6 seconds to 9.9minutes by 6seconds index.
*低保養Low Maintenance密封式軸承,不需經常潤滑及保養。
The GAM-60solder paste mixer provided lubrication and maintenance free operation.
*安全性GAM 60錫膏攪拌機在啟動運轉之后,上蓋有Interlock安全鎖裝置。
規格:
電源 Power Supply |
AC110V或AC220V(可切換) AC 110V / 220V 60HZ |
工作能力 Solder Container |
同時攪拌兩罐錫膏500克或1000克 500g / 1000g Up two container can be loaded |
運轉速度 Arm Rotation Speed Approx |
400rpm/min (WHEN LOADED) |
微電腦處理能力 Micro processor Capability |
斷電自動記憶 Record former data by memory Revise data for save real time |
顯示與警告 Display & Alarm |
LED數字顯示,燈光閃爍,蜂鳴警告 LED Digital Display Flash light with audio alarm |
攪拌時間 Kneading timer |
0.1-9.9分鐘數字設定0.1~9.9 Min |
錫膏夾具 Holding |
萬用治具 suitable different kind solder past container. |
噪音 Noise |
低操作聲音 Low operation noise |
機械尺寸 Dimension |
L410*W410*H400mm |
重量weight |
33kg |
